Introduction
With the rapid development of industrial automation, various automation equipment and control systems are used more and more widely, and higher requirements are placed on production efficiency and product quality. As a common packaging equipment, carton packing machine plays an important role in the packaging industry. The automatic control system of the carton packaging machine is an indispensable part of these pieces of equipment. It can greatly improve production efficiency and packaging quality and is an indispensable part of the development of the carton packaging machine.
The following article will take you to understand the automatic control system of the carton packaging machine.
1. What is the automatic control system of the carton packaging machine?
The automatic control system of the carton packaging machine is a set of automatic control systems composed of various sensors, actuators, controllers, and human-machine interfaces. It can fully monitor and control the operation of the carton packaging machine and realize the automatic packaging production process. The automatic control system of the carton packaging machine mainly includes 2 types: open-loop system and closed-loop system.

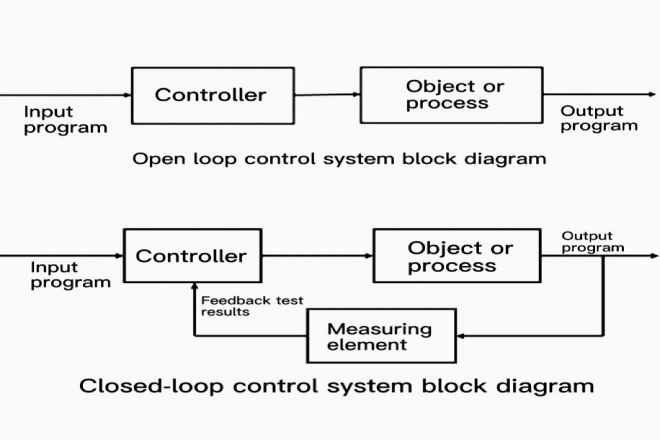

2. Difference Between Open Loop System and Closed Loop System
The open-loop system refers to a control method that does not correct the control quantity by monitoring and feedback on the process output during the control process. In the open-loop system of the carton packaging machine, the operation of the packaging machine is mainly controlled by setting appropriate parameters, but the control amount cannot be monitored and adjusted in real-time, and it is easily disturbed by external factors, and the stability of the packaging quality cannot be guaranteed.
The closed-loop system is the system that collects feedback information through sensors, compares it with the set value, and adjusts the output of the system according to the comparison result so as to realize the control and adjustment of the operating state of the system. The automation system of the carton packing machine usually has sensors to monitor the carton size, position and packaging quality, and other parameters, and adjusts the work of the machine according to this feedback information so that it can adapt to cartons of different sizes and qualities for packaging. Therefore, the automation system of the carton packaging machine currently on the market is usually a closed-loop system.
3. Types of automatic control systems for carton packaging machines
The automatic control system of the carton packaging machine can be divided into the following types according to the different control methods:
- Single closed-loop control system:
This type of control system has only one closed-loop control link, which ensures the stability of packaging quality through real-time monitoring and adjustment of the control amount. It is suitable for products that do not require high packaging.
- Multi-closed-loop control system:
This type of control system has multiple closed-loop control links, which can simultaneously monitor and adjust multiple control quantities to improve the consistency and stability of packaging quality. It is suitable for products with higher packaging requirements.
- Open loop and closed loop combined control system:
This type of control system combines open-loop control and closed-loop control and can realize a partially automated packaging production process through open-loop control on the premise of ensuring basic packaging quality.
4. The link of the closed-loop control system
The closed-loop control system of the carton packaging machine usually includes the following links:
Sensors: including photoelectric sensors, pressure sensors, etc., used to collect and monitor the input information of the packaging machine.
Controller: including PLC (programmable logic controller), etc., used to make logical judgments and control outputs based on input information.
Actuators: motors, cylinders, etc., used to perform corresponding movements or actions according to the instructions of the controller.
Man-machine interface: including touch screen, operation panel, etc., used for interaction and monitoring between the operator and the carton packaging machine.
5. Basic requirements for automated control systems
The automatic control system of the carton packaging machine should meet the following basic requirements in application:
Stability: The control system can work stably to ensure the stable operation of the packaging machine and the stability of the packaging quality.
Flexibility: The control system can be flexibly adjusted and switched according to different product packaging requirements to meet diverse packaging needs.
Reliability: The control system can work stably and reliably for a long time, reducing failure and downtime.
Scalability: The control system can be easily expanded and upgraded to meet the needs of future development.
Conclusion
The automatic control system of the carton packaging machine plays an important role in the packaging industry. Through intelligent control and adjustment, it can greatly improve production efficiency and packaging quality and create greater value for enterprises. With the continuous advancement of automation technology and the continuous development of carton packaging machines, the application of its automation control system will become more extensive and intelligent.
